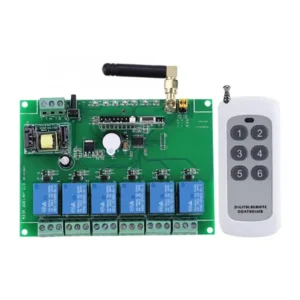

433MHZ Wireless Control 6 Channel Relay Module

Wireless Control 6 Channel Relay Module

The 6-Channel RF Remote Relay Receiver Controller is a versatile wireless relay control module designed for remotely switching electrical equipment. It features six independent relay channels and supports three selectable operating modes: Momentary (Jog), Self-Locking (Toggle), and Interlocking. Users can switch between these modes according to different application requirements.

The controller can learn and store the code of a compatible RF remote control, making setup simple and convenient. After pairing, the wireless remote can send ON/OFF commands to control the six relays independently.

With its stable operation, low power consumption, long wireless transmission range, and multiple operating modes, this relay controller is suitable for smart home automation, electronic doors, windows, lifting equipment, industrial controls, security systems, switches, and other remote-control applications.

Key Features

• 6 independent RF-controlled relay channels
• Supports Momentary, Self-Locking, and Interlocking operating modes
• Wireless ON/OFF control
• Remote control code learning function
• Stable performance and low power consumption
• Wireless receiving distance of approximately 50–1000 m, depending on environmental conditions
• Each relay supports a maximum load current of 10 A
• Blue LED indicators show individual relay operating status
• Red LED indicates received RF signals
• Suitable for switching and electrical control applications
• Compact controller size for convenient installation

Operating Modes

1. Momentary Mode

The 6 channel relay module remains activated while the corresponding remote-control button is pressed and returns to its original state when the button is released.

2. Self-Locking Mode

Press the remote-control button once to turn the corresponding relay ON, and press it again to turn it OFF.

3. Interlocking Mode

Only one relay can remain ON at a time. Activating another channel automatically switches off the previously activated relay, making this mode suitable for applications requiring mutually exclusive outputs.

Specifications of the 6 channel relay module

* Actual wireless range and maximum load depend on the operating environment, electrical load type, power supply, and installation conditions. The stated power rating should be verified against the specific load and relay specifications before use.

Applications

• Smart home automation
• Electronic doors and gates
• Window control systems
• Lifting equipment
• Industrial control
• Security systems
• Remote electrical switches
• Motor and equipment control
• Lighting control
• Wireless relay automation

Safety Note: This 6 channel relay module is designed to switch potentially hazardous mains voltages. Installation and wiring should be performed by a qualified person, with appropriate electrical protection and enclosure.
